Henan Perfect Handling Equipment Co.,Ltd. is specializing in designing and manufacturing material handling equipment and transport trolleys.Over the years, we analyzed the problem during the transferring, and we designed a industrial trailers which has better structure and mechanism.

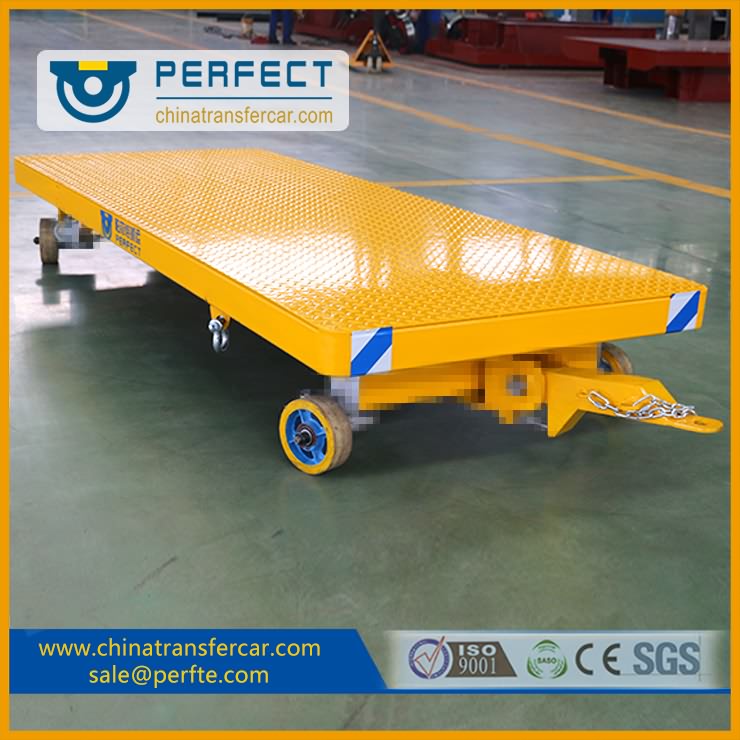

This industrial trailers is connected with the tractor by a pin, which is easy to be removed. The tow bar could be installed both the front and the tail of the industrial trailers. The four wheels of the industrial trailers are connected by steel bars to assistant to the turning.
All the wheels of the industrial trailers are connected by steel bars, so all the wheels could be involved in the turning. After the analysis of the steering mechanism and the kinematics of the moving, we build a model and optimize the mechanism to make the turning possible in small space. Considering the applicability, we install additional tow bar to make it possible towed on both sides, on the same time it is also available for several trolleys to move together, which will save a lot of time for the transportation during the warehouses.
|
No.
|
Item |
Value |
Note
|
|
1
|
Load Capacity |
1t--30t |
|
|
2
|
Table Size |
Customized |
|
|
3
|
Quantity of Wheel |
4、8、10 |
|
|
4
|
Diameter |
Design by load capacity |
|
|
5
|
Steering Mode |
Two wheels or four wheels |
|
|
6
|
Absorber |
Customized |
|
|
7
|
Tow device |
Hinge Joint |
|
|
8
|
Height of Rail |
Customized |
|
|
9
|
Color |
Yellow |
|
|
10
|
Surface Treatment |
Sand-blasting, Anti rust primer |
