■ Overview

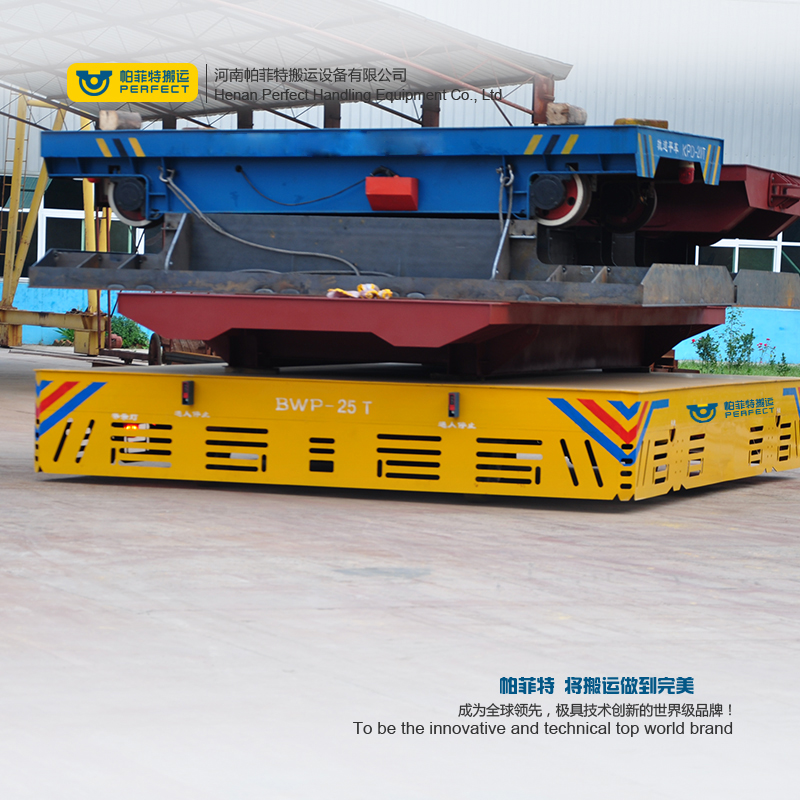

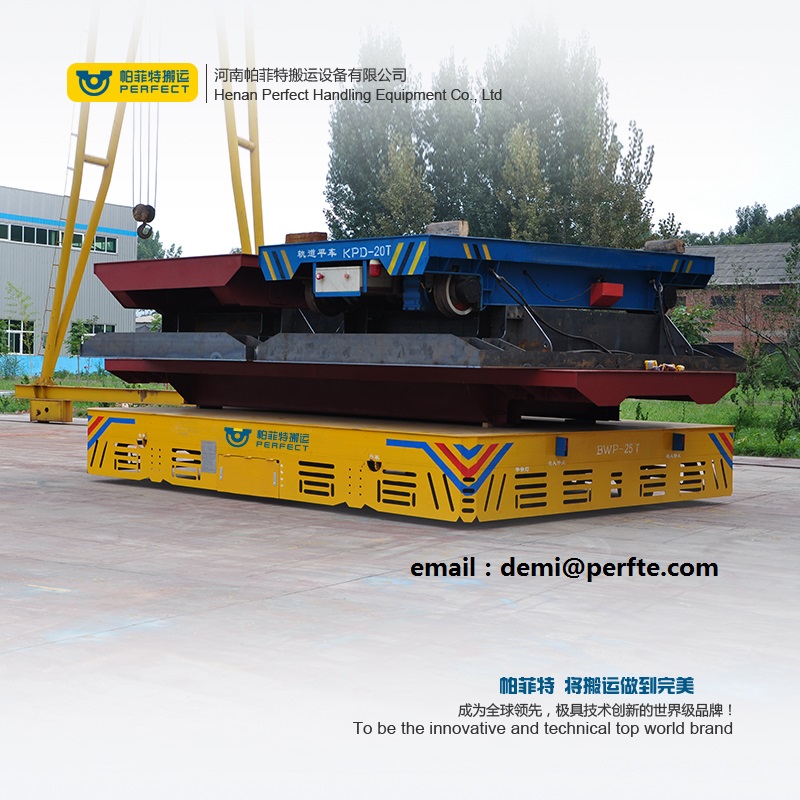

The automated trackless transfer cart is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. BWP type automated trackless transfer cart can be equipped with either lithium battery or rechargeable storage battery, which can achieve long working hours to meet different work needs.BWP turntable electric cart can turn freely on the floor at 360 degree angle by pedent line control or wireless remote control.The automated trackless transfer cart mainly consists of electric system, cart carrier base, travelling mechanism and frame fittings.Electric system includes resistor, control box and control handle.
■ Technical Data
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) |
0-20
|
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
■ Application
The automated trackless transfer cart is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
For automated trackless transfer cart, it has been widely used in this field with hot market. Any requirement, welcome to contact with us. The proper solution will be provided once listening to your voice by our professional engineer.
