■ Overview

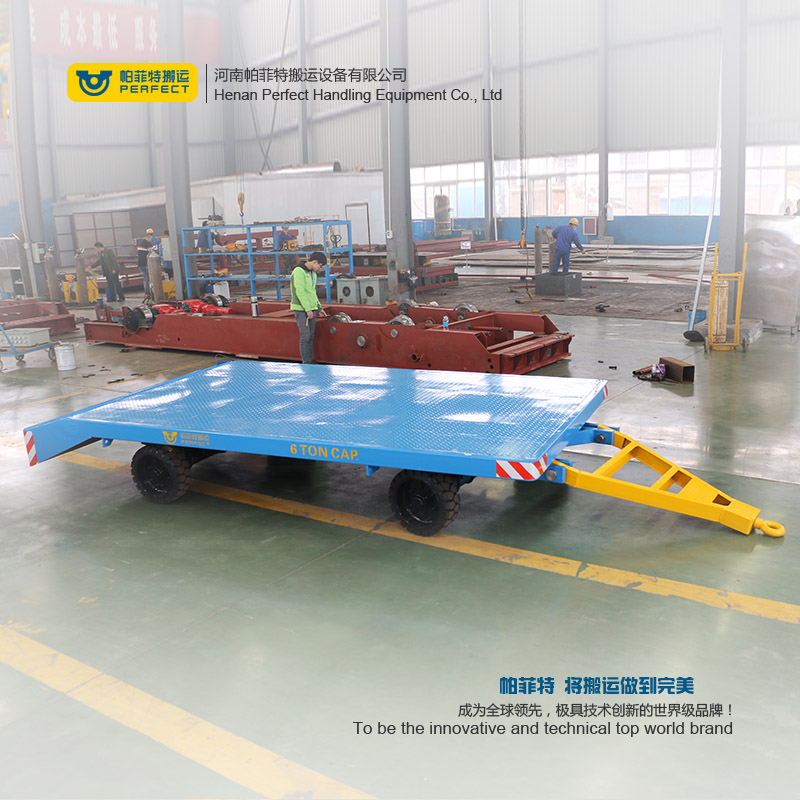

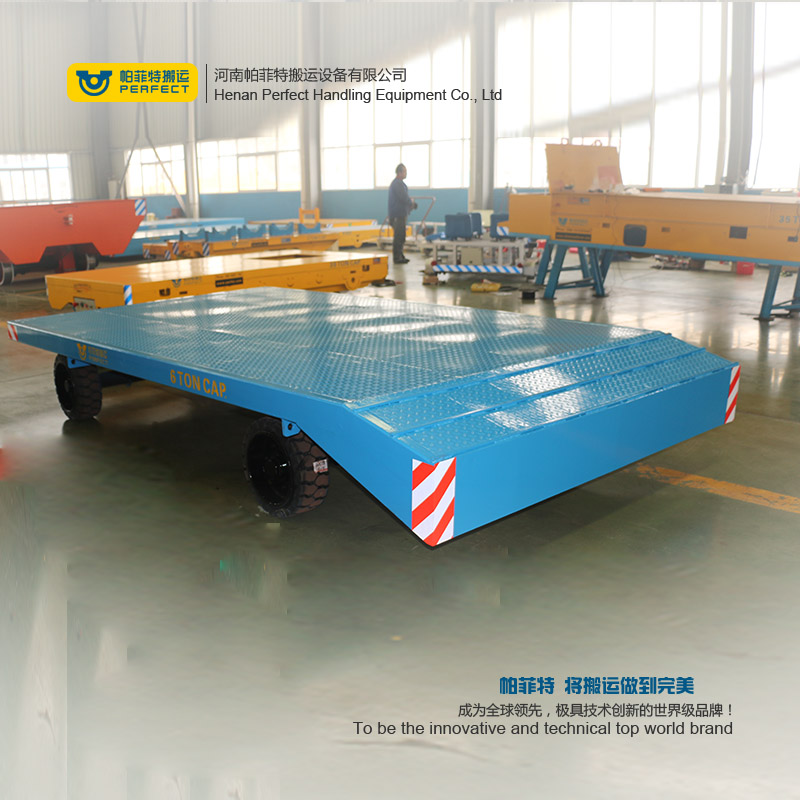

The customized 1-150 ton towed transfer cart for transport load goods is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The customized 1-150 ton towed transfer cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more customized 1-150 ton towed transfer cart could be towed by one tractor. The customized 1-150 ton towed transfer cart is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
■ Technical Data
| Model | BWT-2t | BWT-5t | BWT-10t | BWT-20t | BWT-30t | BWT-45t | BWT-60t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000*1500 | 2500*1500 | 3000*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
|
Height (mm) |
500 | 600 | 700 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
■ Application
-
The 1-150 ton towed transfer cart will apply pressed-on solid rubber tire, which makes the trailer with low height but heavy load capacity.
-
The quantity of wheels is from 8-16, and service life of wheels will be over than 5 years, which is very safe, reliable and cost saving
-
We will use heavy steel to build the structure of the 1-150 ton towed transfer cart, which will have a service life at least 20 years
-
Several 1-150 ton towed transfer cart could be towed together
-
Running distance of roller bed trailers is unlimited;
-
The height of towing hook is adjustable to adapt different tractor, forklift. There are two springs on the towing device, which will protect the 1-150 ton towed transfer cart and cargo when it is started or suddenly stopped.
-
The turning device is large rotation support as the fifth wheel, which is usually used in excavating machinery and truck crane.
-
1-150 ton towed transfer cart applies balance beam for the wheels to make the trailer available on the uneven ground
-
The frame of roller bed trailers is made of steel beam, so the load ability of the trolley is strong and it is not easy to bend over and avoid the deformation, which extends the service time;
-
1-150 ton towed transfer cart applies balance beam for the wheels to make the trailer available on the uneven ground
-
1-150 ton towed transfer cart will be equipped with connector or pin to cooperate with the tractor or forklift.
