Busbar Power Transfer Vehicle Paper Making Industry

  • Model : Transfer cart-20T
  • Rated Load(T) : 20T
  • Wheels : Cast steel
  • Rail Type : P38
  • Dimension : as per customer's needs
  • Running Distance : no limit

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • 10t-rail-transfer-carriage
  • busbar-powered-transfer-vehicle
  • material-transfer-bogie
  • KPC-rail-car-package
  • bus-bar
Main Products
On-rail Transfer Cart
Custom Transfer Machine
Trackless Transfer Car
Hoisting Equipment
Industrial Trailer

Need Help?

or Email us:

sale@perfte.com
■ Overview
About Us
• Established in 2003, people of PERFECT has gong a long way in manufacturing electric rail transfer vehicle, especially the busbar power transfer vehicle. In these years, we never give up every requirements from customer, because we have our goal to be a global manufacuturer and let our customer satisfied. This is our most honour.
• With over 10 years' manufacturing experience, we have passed ISO9001 certificated manufacturer of transfer vehicle. People of PERFECT is always ready to learn from our customers. Just as our chief manager has said, we make a progress from our customer. That is the reason we are growing quickly and still have great energy to develop stronger.
• What's more, each of PERFECT product goes through a series of thorough testing and precise steps before being shipped on board. With worker's scrupulous effort and updated facilities, we have the confidence to withstand the most strict testing from our customer.

Certificates

■ Technical Data
Featured Advantages

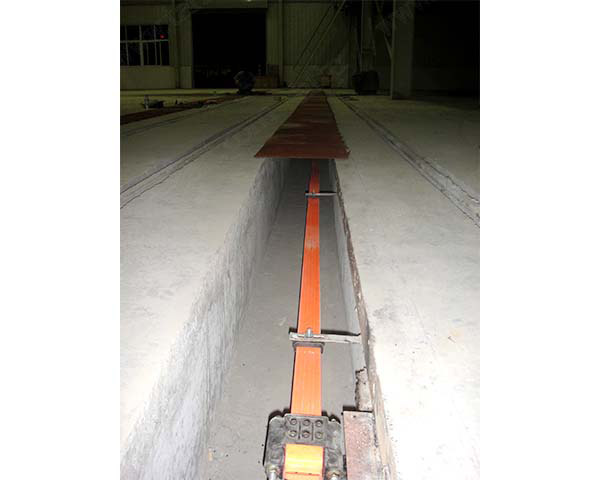

♦ It is equipped with Busbar Power Supply System.
♦ It can offer unlimited distance of operation.
♦ Load capacity from 1t to 300t.
♦ It is widely applied for Hoist and Crane manufacturing industry,metallurgical industry and other industry.

Technical Parameters for Busbar Power Transfer Vehicle

Model KPC-2t KPC-5t KPC-10t KPC-16t KPC-20t KPC-25t
Rated Load(t) 2 5 10 16 20 25
Table Size(mm) Length( L) 2000 3500 3600 4000 4000 4500
Width( W) 1500 2000 2000 2000 2200 2200
Heigth( H) 450 450 500 500 550 600
Wheel Diameter(mm) Ф270 Ф300 Ф300 Ф350 Ф350 Ф400
Wheel Quantity 4 4 4 4 4 4
Running Speed(m/min) 25 25 25 20 20 20
Motor Power(Kw) 0.8 1.5 1.5 2.2 2.5 3
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5
Reference Weight(t) 2.3 3.3 3.8 5 5.5 6
Recommended Rail Model P15 P18 P18 P24 P24 P38
■ Application
Busbar Transfer Vehicle Paper Making Industry
► Application
There is a featured advantage of the busbar transfer vehicle. That is, it has a low vehicle height.
Therefore, it is easy to load and unload heavy cargoes such as the steel tubes and pipes, steel coils and plates, paper making mills in the metallurgy plant, shipbuilding industry, etc.

► Custom Design
1,Custom design can be realized both in the applied environment and special table size.
2, Anti-explosion busbar powered transfer vehicle is designed to transfer heavy cargoes in special environment such as coal and gas industry.
3, Coil busbar transfer vehicle is designed to transfer cargoes of special shapes such as the coils. In this way, it is not easy for coils to fall off the table, because the table has a special shape which can place coils firmly.

► After Sale Service
♦ Our commitment: The load bearing safety factor of the vehicle is no less than 120%.
♦ Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
♦ 16 hours engineering service and 24 hours internet service for our customers.
♦ During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
♦ Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
