Home > Products > On-rail Transfer Cart

Electric rail platform transfer table for heavy duty material handling solution

Product Name : Motorized railway wagon
Load Capacity : 25 ton
Certificate : CE, ISO, SGS
Application : Heavy industry assembly line products transportation
Special Function Available : Hydraulic lift system, PLC operation

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

Share with :

Main Products

On-rail Transfer Cart

15 ton electric battery flat car with loading table rail transfer cart for carrying heavy things Track powered low voltage rail electric transfer car for workshop transportation Electric rail platform transfer table for heavy duty material handling solution Heavy industry use rail mounted electric transfer cart for transportation Factory use automated shuttle car rail guided vehicle for transportation 100t electric operated heavy duty ladle transfer car Towed Rail Trailer For Steel Plate Transportation Busbar Power Transfer Vehicle Paper Making Industry Cable Powered Transfer Trolley Assembly Line Transport Battery Powered Steel Plant transfer car Rail Transfer Cart Heavy Equipment Machinery Transport

Custom Transfer Machine

Synchronize Operation Electric Transfer Cart with Lifting Table Transfer Trolley With Hydraulic Lifting Table Motorized Transfer Car On Turntable Steerable Trackless Transfer Car Free Moving On Cement Floor Heavy Loads Track Traverser In Manufacture Plant Ferry Condition Steel Mill Motorized Turning Transfer Carriage On Curved Tracks Motorized Coil Transfer Car On Track For Aluminium Coil Handling Steel Coil Handling Cart With Rubber Wheel Explosion Proof Cable Reel Scrap Ladle Transport Cart

Trackless Transfer Car

heavy duty 15t automated plate trackless transfer cart machine automated guided vehicle smart trackless flatbed transfer cart battery drive automatic trackless transfer cart to transport large tonnage goods Custom-built Steerable Transfer Cart on Concrete Ground Custom Steerable Transfer Car Movable Transfer Tables in Factory for Handling Heavy Industry Electric Transfer Wagon Electric Mould Trolley Cart New designed trackless industrial trailers with heavy load capacity Heavy duty die transfer system cart for factory transportation Forklift Towed Transfer Trolley On Concrete Floor

Hoisting Equipment

3t Shipyard Electric Winch to pull rail trolley Warehouse Electric Trolley Double Girder Overhead Crane 16t Single beam box girder electric goliath crane for steel factory 10t single beam truss girder outdoor electric rail gantry crane 16t workshop Electric hoist Single Girder Overhead Crane 2t wire rope hand chain hoist Column Mounted Fixed Pillar Jib Crane Warehouse Trolley Electric Wire Rope Hoist

Industrial Trailer

customized 1-150 ton towed transfer cart for transport load goods transfer flat trailers towed by tractor material handing equipment manufacturer 10 ton steering work truck trailer for railroad transport Steel industry used towing factory transfer trailer Heavy material flat bed truck utility trailer for factory transport Airport baggage cargo and luggage transfer trailer workshop transportation 20 ton factory bulk cargo transport industrial trailer

Need Help?

or Email us:

sale@perfte.com

Facebook Twitter Linkedin YouTube

Our Factory

Overview
Technical Data
Application
Video
Inquiry

■ Overview

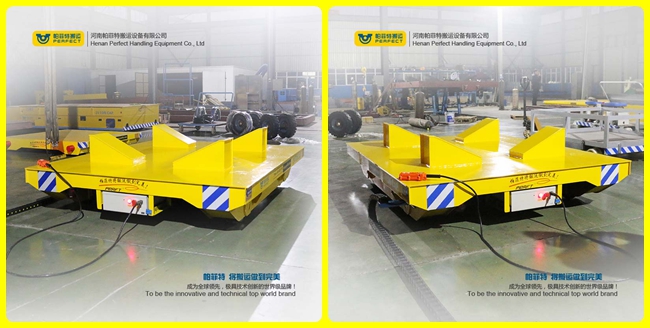

Electric rail platform transfer table for heavy duty material handling solution

The electric rail platform transfer table is powered by trailing cable, which always is put in the middle of the rails. The external power source is passed directly to the motor of the electric rail transfer table by dragging cable when the transfer table running. A towline is alternative to protect the cable from abrasion if necessary.

■ Technical Data

Model		BTL-2t	BTL -20t	BTL -50t	BTL -100t	BTL -150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Recommended Rail Model		P15	P24	P43	QU100	QU100

■ Application

Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
