Trackless Electric Handling Vehicle

2016-08-25

Trackless of trackless handling equipment

Trackless Electric Handling Vehicle

Product Description



Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of trackless handling equipment. Our company has been founded for 13 years and has become enterprise in the motorized trackless handling equipment business.

The BWP series trackless handling equipment is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. It can turn around on the cement floor.All the trackless handling equipment are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the trackless handling equipment. Also, we will provide intelligent automatic rapid charger with the trackless handling equipment. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.

Trackless of trackless handling equipment Trackless of trackless handling equipment

Technical Parameters
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 7.5 30 45 60 75
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance Mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintainance Free of maintainance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display
Detailed Images



Detailed Image Of trackless handling equipment

Trackless of trackless handling equipment

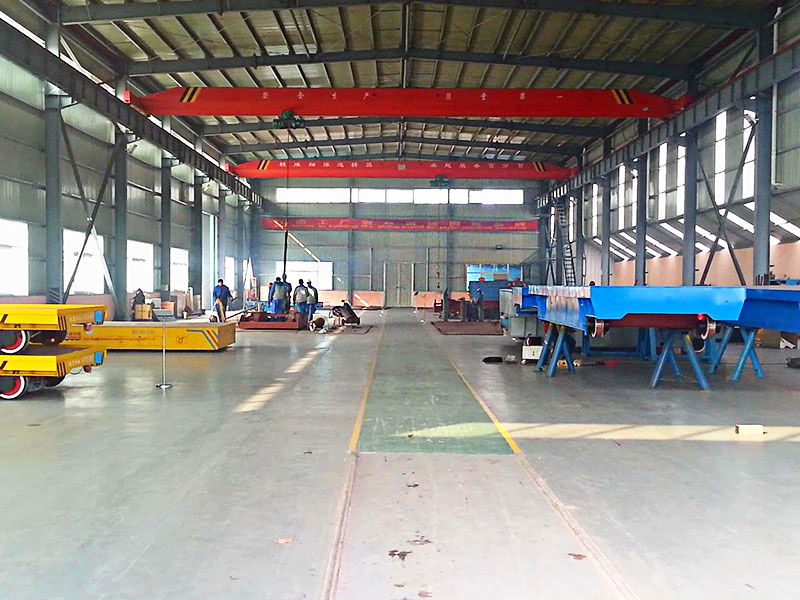

Processing Line Of trackless handling equipment

Trackless of trackless handling equipment

Components Of trackless handling equipment

Trackless of trackless handling equipment

Functions & Advantages Of trackless handling equipment
  • The trackless handling equipment is Anti-high temperature,Anti-high explosion;
  • The trackless handling equipment is powered by battery;
  • With lifting holes,The trackless handling equipment is convenient to shipment;
  • The trackless handling equipment has a feature of stable start, big starting power, long lifetime;
  • The trackless handling equipment can spin around 360 degrees;
  • Running distance of trackless handling equipment is unlimited;
  • Safe and convenient operation is available for trackless handling equipment;
  • High using frequency for trackless handling equipment.
Application Site



Application Sites Of trackless handling equipment
The trackless handling equipment is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

Trackless of trackless handling equipment

Railroad Traverser

Packaging & Shipping



  • The trackless handling equipment body is packed with tarp, the trackless handling equipment wheel and parts will be packed with wooden case.
  • For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the trackless handling equipment is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
  • Price Term: EXW, FOB, CIF, C&F,DDU, DDP.

Trackless of trackless handling equipment

Certifications



Trackless of trackless handling equipment



Our Services



  • Our commitment: The load bearing safety factor of the trackless handling equipment is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our trackless handling equipment can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Company Information



Trackless of trackless handling equipment

Based on modern plant and advanced production equipment, we can produce all kinds of trackless handling equipment from 1-1300 tons, our main products including BDG series trackless handling equipment, BJT cable drum series trackless handling equipment, BHX safety sliding line series trackless handling equipment, BXC battery series trackless handling equipment, BTL towed cable series trackless handling equipment, BP non-power series trackless handling equipment, BQY train towed series trackless handling equipment, BWP trackless series trackless handling equipment and special trackless handling equipment, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.

Our trackless handling equipment not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, electric rail tractor utility patent, steerable transfer car utility patent, lifting electric cart utility patent, scissor hydraulic lifting electric cart patent, whole ring rail electric flat car’s wheel and flat car patent.

FAQ



1. Q: What term of payment do you accept?

A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.

2. Q: What is you delivery time?

A: We will delivery the trackless handling equipment you ordered 45 days after we accept the prepayment.

3. Q: How do trackless handling equipment been shipped?

A: We export the trackless handling equipmentby sea or train with full container, LCL or in Bulk.

4. Q: Do you have quality assurance for trackless handling equipment?

A: Yes, we have one year of assurance.
